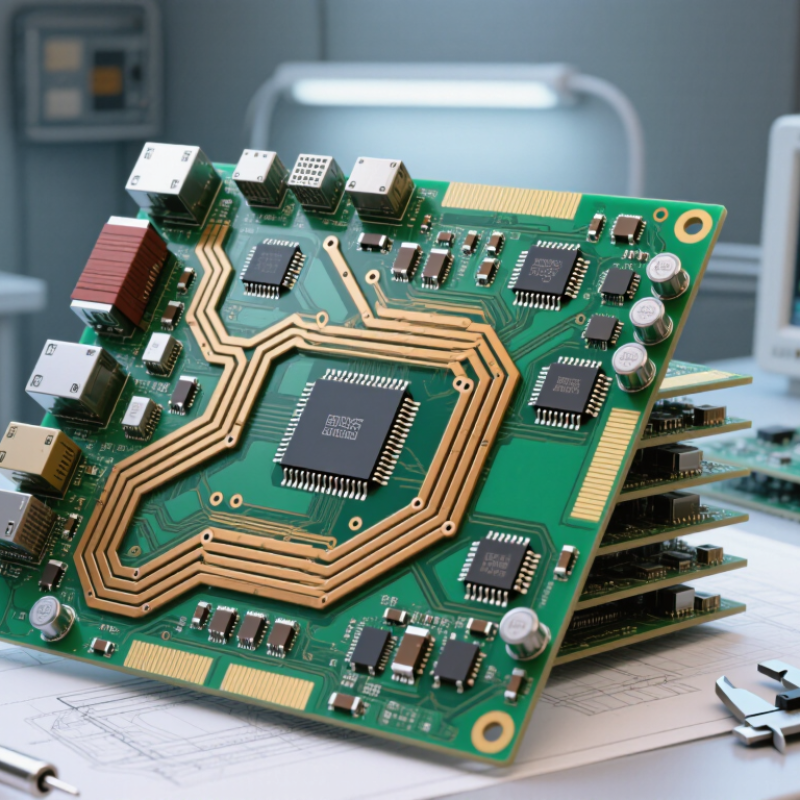

What Is a Custom Circuit Board and How to Design Your Own

A custom circuit board is more than a green plate with copper traces. It is a physical system that connects power, signals, components, software, and human decisions. The global PCB market reflects its importance. Fortune Business Insights valued the market at approximately US$89.7 billion in 2023 and projects continued growth through 2032. Mordor Intelligence also identifies rising demand from automotive electronics, communications, and industrial automation. These figures show opportunity, but they do not make design simple.

To design your own circuit board, begin with the electrical purpose. Then define voltage limits, current paths, component availability, thermal conditions, and enclosure size. Eric Bogatin, a recognized signal-integrity educator, states, “The signal is not the voltage; the signal is the voltage between two points.” That principle changes how designers route traces and plan return paths. IPC-2221 provides widely used guidance for printed-board design, while IPC-6012 addresses qualification and performance requirements. I have learned that many failures start with small assumptions: an undersized trace, an ignored connector, or a missing test point. The board may pass a schematic review and still fail during assembly. It may work on a bench, then overheat inside a sealed enclosure. That is the uncomfortable part. Good design requires revision, measurement, documentation, and honest testing. This guide explains the practical choices behind a custom PCB, from schematic capture and stack-up planning to routing, fabrication, inspection, and prototype validation. A perfect first attempt is unlikely. A traceable process is far more valuable.

Table of Contents [Hide]

1 Defining a Custom Circuit Board and Its Core Functions

2 Identifying Project Requirements and Selecting Board Components

3 Creating the Schematic and Planning the Circuit Layout

4 Designing the PCB and Preparing Files for Manufacturing

5 Testing, Troubleshooting, and Refining the Finished Board

Defining a Custom Circuit Board and Its Core Functions

A custom circuit board is a purpose-built platform for connecting electronic components and controlling electrical signals. Unlike a general development board, it matches one device’s voltage, size, interfaces, and operating conditions. Its core functions include power distribution, signal routing, component mounting, noise control, and mechanical support. A compact board may contain copper traces only 0.15 millimeters wide, while plated holes connect several copper layers.

The design begins with a functional requirement, not a drawing. Define input voltage, current peaks, processor interfaces, sensor accuracy, temperature range, and enclosure limits. Then create the schematic and assign footprints with verified dimensions. IPC-2221 provides widely used guidance for PCB design, including spacing, insulation, and conductor considerations. The right stack-up matters. A continuous ground plane can shorten return paths and reduce electromagnetic interference.

Recent market analysis from Grand View Research estimates the global PCB market will grow at about 5.6% annually from 2024 to 2030. That growth reflects increasing demand for compact, connected electronics. Still, density is not the only design goal. My first layout might prioritize small size and overlook heat near a voltage regulator. That mistake is realistic. Thermal simulation, design-rule checks, and prototype measurements should challenge the layout before production. IPC’s 2024 electronics industry outlook also identifies supply-chain resilience and skilled engineering as continuing concerns. Document every revision, test exposed copper pads, and inspect solder joints under magnification. Small errors become expensive quickly.

Identifying Project Requirements and Selecting Board Components

A custom circuit board is designed for one defined job, not every possible job. Start by describing the device in practical terms. Record its input voltage, peak current, operating temperature, physical size, and expected service life. Note the required sensors, communication interfaces, mounting holes, and connector positions. A small sketch can expose conflicts early. My first requirement lists were often too vague, especially about startup current and cable length.

Translate each requirement into a measurable target. For example, a battery-powered controller may need 3.3-volt logic, less than 200 milliamps, and stable operation near a motor. Consider noise, vibration, moisture, and accidental reverse connection. These details affect the circuit more than appearance. Leave room for testing points. That small decision can save hours during fault finding.

Select components according to function, tolerance, heat, availability, and assembly limits. A voltage regulator must handle peak demand, not only average demand. Protection parts may include a fuse, reverse-polarity circuit, and transient suppression. Choose connectors that match the enclosure and the user’s handling habits. Read datasheets carefully, including layout diagrams and thermal limits. I once selected a compact component without checking heat dissipation. The prototype worked briefly, then failed under continuous load. That mistake changed my review process: I now check electrical, mechanical, and thermal requirements together before drawing the schematic. Testing still reveals assumptions that paperwork misses.

What Is a Custom Circuit Board and How to Design Your Own - Identifying Project Requirements and Selecting Board Components

Design Dimension	Recommended Target or Typical Value	Why It Matters	Design Check
Project Requirements
Board function	Define the main task, user inputs, outputs, communication interfaces, and operating sequence before schematic capture.	A clear functional definition prevents unnecessary components and reduces redesign risk.	Create a block diagram showing power, processing, sensing, communication, and load sections.
Input power	Document nominal voltage, minimum and maximum voltage, operating current, startup current, and polarity.	Power limits determine protection devices, regulator selection, trace width, and connector ratings.	Include at least one worst-case calculation for voltage drop and peak current.
Logic voltage	Common digital logic rails include 1.8 V, 3.3 V, and 5 V.	Devices operating at different logic levels may require level shifting or compatible input thresholds.	Compare the input-high and input-low specifications of every connected digital device.
Operating environment	Record temperature, humidity, vibration, dust, liquid exposure, and enclosure conditions.	Environmental conditions influence component ratings, PCB material, coating, connector selection, and spacing.	Select operating ratings with appropriate margin above the expected environment.
Mechanical constraints	Specify board length, width, thickness, mounting-hole locations, keep-out zones, and connector orientation.	A board can be electrically correct but unusable if it does not fit the enclosure or mating assembly.	Add a mechanical drawing and verify all hole diameters and edge clearances.
Signal requirements	List signal type, frequency, voltage level, rise time, impedance requirement, and maximum route length.	High-speed and sensitive analog signals require controlled routing, short return paths, and noise management.	Separate noisy switching nodes from low-level analog and timing-sensitive signals.
Safety and compliance	Define insulation, creepage, clearance, grounding, fuse, and protective-earth requirements where applicable.	Safety requirements can change spacing, layer arrangement, enclosure design, and component selection.	Review the applicable electrical and product-safety requirements before layout begins.
Manufacturing constraints	Confirm minimum trace width, minimum spacing, drill diameter, copper thickness, layer count, and assembly method.	Design rules must match the intended fabrication and assembly process.	Run design-rule checks and obtain the fabricator's capability limits before final layout.
Component Selection
Microcontroller or processor	Select by required processing speed, memory, peripherals, operating voltage, package, and power budget.	The processor determines available interfaces, firmware capacity, clock requirements, and much of the power architecture.	Allow unused pins for debugging, future features, or test points when space permits.
Voltage regulator	Choose an input range above the maximum supply and an output current at least 20–30% above the expected continuous load.	Voltage margin and thermal capacity improve reliability during supply variation and load transients.	Check dropout voltage, efficiency, thermal dissipation, switching frequency, and required external parts.
Power input protection	Consider reverse-polarity protection, overcurrent protection, transient suppression, and input filtering.	Protection reduces damage from wiring mistakes, surges, electrostatic discharge, and unstable supplies.	Place protection components close to the power-entry connector.
Decoupling capacitors	Use local bypass capacitors at integrated-circuit supply pins; a common starting point is 100 nF per digital supply pin group plus bulk capacitance.	Local capacitance supplies fast transient current and reduces supply noise.	Place the smallest-value capacitors closest to the power and ground pins with short traces.
Clock source	Use an internal oscillator, crystal, resonator, or external clock according to timing accuracy and interface requirements.	Clock accuracy affects communication timing, measurement accuracy, and real-time operation.	Follow the processor's recommended load-capacitance and layout guidance.
Communication interface	Select interfaces such as UART, I²C, SPI, USB, CAN, or differential signaling based on speed, distance, and noise conditions.	Interface choice affects connector count, termination, protection, routing, and firmware complexity.	Add pull-up, termination, transceiver, or level-conversion components where required.
Sensor or analog front end	Match input range, resolution, bandwidth, accuracy, noise level, and supply voltage to the measurement target.	Analog performance depends on both component specifications and PCB layout quality.	Use a clean reference, suitable filtering, and separation from high-current switching paths.
Connectors	Specify contact count, current rating, voltage rating, mating direction, retention, and environmental rating.	Connectors define how the board interfaces with power, sensors, cables, and other assemblies.	Label pin 1, power polarity, signal names, and unused connections on the silkscreen.
Test and programming access	Provide accessible pads or headers for programming, reset, ground, power, and key measurement nodes.	Test access simplifies firmware loading, debugging, production inspection, and field service.	Keep test points reachable after enclosure installation when maintenance is expected.
Layout and Verification
Layer arrangement	Use a solid reference plane where practical; multilayer boards commonly reserve layers for signals, power, and ground.	A continuous reference plane shortens return paths and helps control noise and electromagnetic emissions.	Avoid splitting return paths beneath high-speed or sensitive traces without a defined alternative path.
Trace width	Calculate width from current, copper thickness, acceptable temperature rise, and manufacturing capability.	Narrow high-current traces can overheat or create excessive voltage drop.	Use a recognized PCB trace-width calculation method and verify the worst-case current.
Clearance and creepage	Set spacing according to voltage, pollution level, insulation type, and applicable safety requirements.	Spacing reduces the risk of arcing, leakage, and contamination-related failures.	Apply larger spacing around high-voltage nets and isolate them from low-voltage circuitry.
Thermal management	Use copper areas, thermal vias, heatsinks, airflow, or reduced power dissipation as needed.	Excess temperature shortens component life and can cause inaccurate operation or thermal shutdown.	Estimate junction temperature from power dissipation and the board's thermal resistance.
Final validation	Complete schematic checks, electrical-rule checks, design-rule checks, manufacturing review, and prototype testing.	Multiple verification stages catch logical, electrical, mechanical, and manufacturing problems before production.	Test power rails, current consumption, interfaces, thermal behavior, and key signals on the prototype.

Creating the Schematic and Planning the Circuit Layout

A custom circuit board begins with a clear schematic, not a drawing of copper tracks. Define each function, voltage rail, connector, and test point before planning the physical layout. In bench work, I place power and ground symbols first. This reveals missing return paths early. The schematic should include component values, tolerances, package footprints, and reference labels. IPC-2221 remains a widely used design standard for spacing, insulation, and board geometry. Those rules reduce avoidable manufacturing risks.

Plan the layout around current flow and signal sensitivity. Keep high-current paths short and wide. Place decoupling capacitors beside power pins, not several centimeters away. Separate noisy switching nodes from analog inputs. A continuous ground plane often improves return paths, but it cannot repair a poor schematic. Check trace width with the expected current, copper thickness, and temperature rise. The Institute of Electrical and Electronics Engineers reports that electromagnetic compatibility failures remain a common development concern, so review clearances and interference paths early. I still make layout mistakes. A second review catches details that speed hides.

Tips: Use a net class table for power, signals, and high-speed lines. Run electrical-rule checks after every major change. Print the board at full scale and place real components on it. This simple test exposes connector errors quickly. Research reports from the printed circuit industry also show continuing growth in connected electronics, increasing pressure for smaller and more reliable boards. Do not chase minimum size too soon. Leave room for probing, rework, and heat.

Designing the PCB and Preparing Files for Manufacturing

A custom circuit board turns an electrical idea into a tested physical system. Designing the PCB requires more than placing components on a screen. The schematic must match the intended circuit, and every symbol needs a verified footprint. I check pin numbers, connector orientation, clearance, and mounting holes before routing begins. Small errors here can create expensive manufacturing delays.

The board layout should follow the expected current, voltage, and signal speed. Wide power traces reduce heating, while controlled return paths improve signal stability. Sensitive traces should stay away from noisy switching areas. Add test points where measurements will be practical.

Details matter. Design-rule checks can catch spacing violations, but they cannot judge every engineering decision. I once treated an automatic check as final approval, and that assumption needed correction.

Before manufacturing, export the required fabrication layers, copper files, solder-mask files, silkscreen files, and drill data. Include a clear board outline and specify the layer stack, material, thickness, and copper weight. Assembly files may also require a bill of materials, component coordinates, and an orientation drawing.

Open the exported files in an independent viewer. Compare them with the layout, especially polarity marks and board edges. Keep revision names consistent across every file. A missing drill file or outdated component list can stop production.

Leave room for review. The first version may work, but careful feedback often reveals weak test access, crowded assembly areas, or unclear manufacturing notes.

Testing, Troubleshooting, and Refining the Finished Board

Testing a custom circuit board starts with power, not optimism. I inspect solder joints under magnification and measure resistance between every power rail and ground. A current-limited bench supply prevents one short circuit from damaging several components. IPC’s 2024 electronics industry survey identified quality as a major manufacturing concern, reinforcing the need for documented checks.

Use an oscilloscope to verify ripple, startup behavior, and clock signals. A multimeter alone can miss a brief voltage collapse. I record probe points, expected values, actual readings, and ambient temperature. NIST’s cost-of-quality research estimated that poor-quality software costs the U.S. economy about $2.41 trillion annually. Hardware defects rarely stay cheap, either.

Troubleshooting works better when changes remain small. Replace one component, rerun one test, and photograph the result. Check connector orientation, solder bridges, incorrect footprints, and floating inputs. Thermal imaging can reveal a regulator heating before visible failure appears. My first revision often passes basic tests but exposes weak assumptions later. That is useful evidence. Refine the schematic, revise the layout, and update the test procedure together. A board that works once is not finished.
