China Best Circuit Board Elements for Global Buyers

Choosing circuit board elements in China can shape a product’s reliability, cost, and production timeline. The term covers more than the bare board. It may include copper layers, laminate materials, solder masks, surface finishes, connectors, and other components. Each choice affects how a finished assembly performs.

Small details matter. A thin copper trace, for example, may not suit a design carrying higher current. A board’s material also needs to match its operating temperature and environment. Buyers should compare specifications, sample quality, manufacturing capabilities, and communication before placing large orders. Clear drawings and acceptance criteria help reduce misunderstandings. They are not a guarantee.

China offers a broad supplier base, but supplier claims still need verification. Request relevant test reports, ask how process changes are controlled, and confirm what inspection records are available. Check that the quoted product matches the intended application, rather than relying on a low price or a polished catalog. Even experienced buyers can miss a detail. I have seen how an unclear finish requirement can lead to avoidable rework. A sample review can catch some issues, though it cannot replace ongoing quality checks.

This guide looks at the circuit board elements global buyers should evaluate, from materials and finishes to supplier capability and quality control. It also considers practical questions around sourcing and communication. The best choice depends on the design, use case, and evidence a supplier can provide. There is no universal winner.

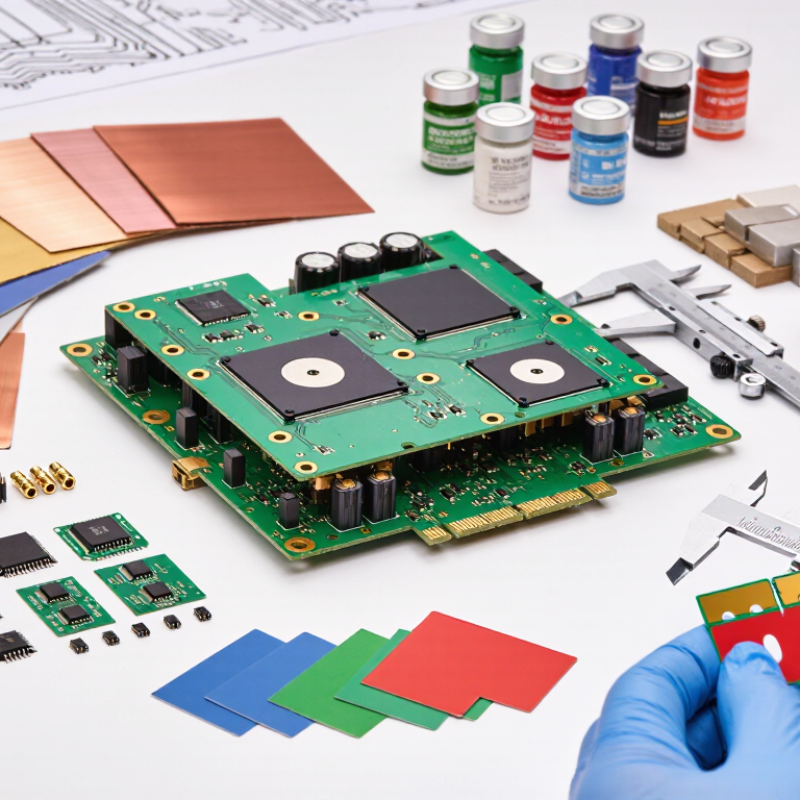

China Best Circuit Board Elements for Global Buyers
Table of Contents [Hide]
1 Core Circuit Board Elements and Their Functions
2 Major PCB Materials and Component Categories
3 How Circuit Board Elements Are Manufactured in China
4 Quality Standards and Certifications for Global Buyers
5 How to Select and Source PCB Elements from China

Core Circuit Board Elements and Their Functions

A circuit board is more than a flat support for components. Its laminate provides mechanical strength and electrical insulation, while copper traces carry signals and power between parts. In multilayer designs, plated vias connect copper layers through small drilled holes. Resistors limit current, capacitors stabilize voltage, and integrated circuits process or control signals. The solder mask protects exposed copper from oxidation and accidental bridging; silkscreen labels help technicians identify parts during assembly and repair.

Grand View Research estimated the global PCB market at USD 76.2 billion in 2023 and projected a 3.7% compound annual growth rate through 2030. That scale makes material and layout choices consequential. Specify laminate properties, copper thickness, and controlled impedance to match the application. For boards near heat sources, check thermal limits and operating conditions, not just nominal ratings. A tidy specification can still miss a real weakness: connectors may loosen under vibration, and narrow traces may run hot under sustained load. Review the design with manufacturing and test teams before production.

Tips: Ask for stack-up details and electrical test criteria. Check that component footprints match the selected parts. Keep a small sample batch for thermal and fit checks. It may feel slower, but early testing can reveal assumptions that drawings alone do not show.

China Best Circuit Board Elements for Global Buyers - Core Circuit Board Elements and Their Functions
Category Circuit Board Element Primary Function Typical Characteristics Practical Selection Consideration
Base material Substrate laminate Provides mechanical support and electrical insulation between conductive layers. Common rigid-board material is glass-reinforced epoxy laminate, often specified as FR-4. Flexible circuits commonly use polyimide. Consider operating temperature, mechanical requirements, dielectric properties, and the board’s intended environment.
Conductive layer Copper foil Forms the conductive paths and copper areas used to connect electrical features. Present on one or both sides of a single-sided or double-sided board, and in multiple layers of a multilayer board. Confirm the required layer count, copper thickness, current capacity, and manufacturing tolerances.
Circuit routing Traces Carry electrical signals or power between component pads, vias, and other copper features. Trace width and spacing depend on electrical, thermal, and manufacturing requirements. Review current, voltage, signal speed, impedance needs, and the available routing space.
Circuit routing Planes and copper pours Provide larger conductive areas, commonly for ground or power distribution, and can support heat spreading. May be continuous or divided into separate regions; connections are defined by the circuit layout. Check grounding strategy, return paths, power distribution, and clearances from other nets.
Layer connection Vias Connect conductive features between different layers of a multilayer board. Common types include through vias, blind vias, and buried vias; their construction and cost vary. Choose via type and dimensions to suit layer connections, routing density, reliability, and production capability.
Component interface Component pads Provide conductive landing areas for mounting and electrically connecting component leads or terminals. Pad geometry varies with the component package and assembly method, such as surface-mount or through-hole mounting. Use package-specific land patterns and check soldering clearances and assembly tolerances.
Surface protection Solder mask Insulates and protects most exposed copper while leaving selected areas available for soldering. Usually applied as a colored coating; openings expose pads and other designated copper features. Check mask openings, spacing, and compatibility with the intended assembly process.
Identification Silkscreen legend Displays component references, polarity marks, labels, and other assembly or service information. Printed on the board surface where space and design rules allow. Keep text legible and avoid placing markings over solderable pads or other critical areas.
Electrical component Resistors Limit current, divide voltage, set bias conditions, or provide termination in a circuit. Specified by resistance, tolerance, power rating, and package or mounting style. Check resistance value, power dissipation, tolerance, temperature behavior, and footprint.
Electrical component Capacitors Store and release electrical energy; commonly used for decoupling, filtering, and timing. Specified by capacitance, voltage rating, dielectric type, tolerance, and package. Verify capacitance under operating conditions, voltage margin, frequency behavior, and placement needs.
Electrical component Integrated circuits Perform functions such as processing, control, amplification, or power management. Available in packages with different pin counts, pitches, thermal characteristics, and assembly requirements. Check package footprint, pin mapping, power requirements, thermal needs, and design documentation.
Electrical component Connectors Provide electrical and, where applicable, mechanical connections to cables, other boards, or external devices. May use through-hole or surface-mount terminals and vary in pitch, pin count, and orientation. Confirm mating compatibility, current rating, retention, pin assignment, and board-edge clearance.
Assembly material Solder joints Create electrical and mechanical connections between component terminals and PCB pads. Formed during assembly using a soldering process appropriate to the component and board design. Consider pad design, component termination, thermal profile, and inspection requirements.

Major PCB Materials and Component Categories

A printed circuit board begins with its substrate, copper layers, and protective finishes. FR-4 is widely used because it balances cost, rigidity, and electrical performance. High-speed designs may need low-loss laminates, while compact power boards often require materials that handle heat more effectively. Copper foil thickness affects current capacity and trace spacing. The right choice depends on operating conditions, not just a material name. Small details matter.

Component categories shape the board’s function. Integrated circuits process signals or control power, while resistors, capacitors, and inductors support stable operation. Connectors link the board to cables or other assemblies. Diodes and transistors manage switching and protection. A practical review checks each part’s footprint, temperature rating, and availability before layout begins. It also checks solder mask, surface finish, and silkscreen readability. A tiny connector mismatch can delay assembly.

Specifications deserve careful comparison. Two laminates with similar labels may differ in loss, moisture behavior, or temperature performance. Buyers should request current datasheets and confirm tolerances with the fabricator. It is tempting to focus only on unit price; that can overlook yield and rework costs. Even a careful checklist misses things sometimes, so prototype testing remains useful.

Major PCB Materials & Component Categories

Standard copper foil weights and their nominal thicknesses—a key material specification for printed circuit boards.

About the data: Copper thickness values are nominal conversions commonly used in PCB specifications; actual finished thickness can vary with manufacturing and plating.

Other major PCB categories: Substrates and laminates (such as FR-4), solder mask, surface finish, and components including resistors, capacitors, integrated circuits, and connectors.

How Circuit Board Elements Are Manufactured in China

How Circuit Board Elements Are Manufactured in China

Circuit board production in China often begins with copper-clad laminate, selected for the board’s layer count, thickness, and operating conditions. Technicians cut panels to size and drill tiny holes for component leads and connections between layers. The holes may be copper-plated, creating conductive paths through the board. Small details matter.

A photoresist layer transfers the circuit pattern onto copper. Unwanted copper is etched away, leaving the designed traces and pads. For multilayer boards, prepared inner layers are aligned and pressed together with insulating material. This step needs careful registration; even a slight shift can affect fine-pitch connections. Solder mask is then applied, with openings left at the pads, followed by printed reference marks and a suitable surface finish.

Checks happen throughout production, not just at the end. Automated optical inspection can find visible pattern defects, while electrical tests check for open or short circuits. Buyers should review the factory’s inspection records, material specifications, and sample boards before placing a large order. Processes and results vary between facilities, so “made in China” alone says little about quality. A practical concern remains: rushed changes to a design can create avoidable production issues. Clear files and timely design reviews help, though they cannot replace a well-controlled process.

Quality Standards and Certifications for Global Buyers

For global buyers, a circuit board certificate is a starting point, not proof that every shipment meets requirements. ISO’s 2022 Survey of Management System Standard Certifications recorded more than 1.2 million ISO 9001 certificates worldwide. The figure shows how widely quality management is used, but it does not certify a specific board’s performance. Check that the certificate covers the actual manufacturing site and process. Confirm its validity, scope, and recent audit status.

Board acceptance needs product-level evidence. IPC-A-600 describes visual acceptability criteria, while IPC-6012 covers qualification and performance for rigid printed boards. Specify the required class and acceptance criteria in the purchase documents; “IPC compliant” alone can be vague. Request lot traceability, electrical test results, and records for copper thickness and hole quality. For a plated via, a microsection report can reveal thin or uneven copper that a surface photograph cannot. That matters.

Match the checks to the application. A simple control board may not need the same testing as a board exposed to vibration or thermal cycling. Ask for sample reports before approval, then compare them with delivered lot records. Paperwork can still miss a weak via. Buyers should also review how defects are logged and corrected. I would not treat a certificate as a substitute for clear acceptance criteria.

How to Select and Source PCB Elements from China

Selecting PCB elements from China starts with a controlled specification, not a low unit price. Define layer count, finished copper weight, board thickness, surface finish, impedance tolerance, and operating temperature. For components, record exact part numbers, approved alternates, and traceability requirements. Small details matter. A connector may fit perfectly but loosen after repeated mating cycles.

Demand is growing, but forecasts need context. The WSTS Spring 2024 Semiconductor Market Forecast projected global chip sales of US$611.2 billion in 2024, up 16.0% year over year. This signals stronger electronics activity; it is not a direct forecast for PCB demand. Use it as context, then compare supplier quotations against your own build schedule and inventory needs.

Ask shortlisted factories for process capability data, material certificates, electrical test records, and a first-article sample. Match rigid-board requirements to IPC-6012, and review acceptance criteria before production. Check that the sample’s hole sizes, copper thickness, and solder mask align with your drawings. A spreadsheet can miss an awkward detail. I would also verify how changes are approved; a cheaper alternate material may quietly affect performance. Start with a pilot lot, document defects, and confirm corrective actions before scaling.
